Free Body Diagrams Solved: Your Ultimate Guide
Introduction: Unleashing the Power of Free Body Diagrams
Struggling with physics problems? Feel like you're always missing a crucial step? The answer might lie in mastering the art of free body diagrams! This week, we're diving deep into the world of "diagrama de cuerpo libre resueltos" (solved free body diagrams), providing you with a comprehensive guide to understanding and applying this powerful problem-solving tool. This article is targeted towards students, engineers, and anyone looking to sharpen their understanding of forces and motion. "Diagrama de cuerpo libre resueltos" are the key to unlocking complex physics scenarios.
What is a Free Body Diagram? "Diagrama de cuerpo libre resueltos"
A free body diagram (FBD) is a simplified representation of an object (the "body") and all the forces acting on it. It isolates the object from its surroundings and shows only the external forces, making it easier to visualize and analyze the forces at play. Crucially, it doesn't include forces the object exerts on other things. "Diagrama de cuerpo libre resueltos" begin with identifying the object of interest.
Why are Free Body Diagrams Important? "Diagrama de cuerpo libre resueltos"
Free body diagrams are essential for several reasons:
- Clarity: They simplify complex systems, making it easier to visualize forces.
- Problem Solving: They help in applying Newton's laws of motion correctly.
- Accuracy: They reduce the risk of overlooking important forces or making incorrect assumptions.
- Conceptual Understanding: They solidify your understanding of force interactions. Looking at "diagrama de cuerpo libre resueltos" will build this understanding.
Steps to Creating a Free Body Diagram: "Diagrama de cuerpo libre resueltos"
-
Isolate the Object: Identify the object of interest and mentally separate it from its surroundings. Represent it as a simple shape (e.g., a box, a circle, or a point).
-
Identify All Forces: Determine all the external forces acting on the object. Common forces include:
- Weight (W): The force of gravity acting downward.
- Normal Force (N): The force exerted by a surface perpendicular to the object.
- Tension (T): The force exerted by a string, rope, or cable.
- Friction (f): The force opposing motion between two surfaces.
- Applied Force (F): Any external force applied directly to the object.
-
Draw Force Vectors: Represent each force as an arrow (vector) originating from the object. The length of the arrow should be proportional to the magnitude of the force, and the direction should indicate the force's direction.
-
Label Forces: Clearly label each force vector with its symbol (e.g., W, N, T, f, F).
-
Establish a Coordinate System: Choose a convenient coordinate system (e.g., x-y plane) and indicate its orientation. This will help in resolving forces into components later.
Studying "diagrama de cuerpo libre resueltos" often reveals the importance of force identification and labeling.

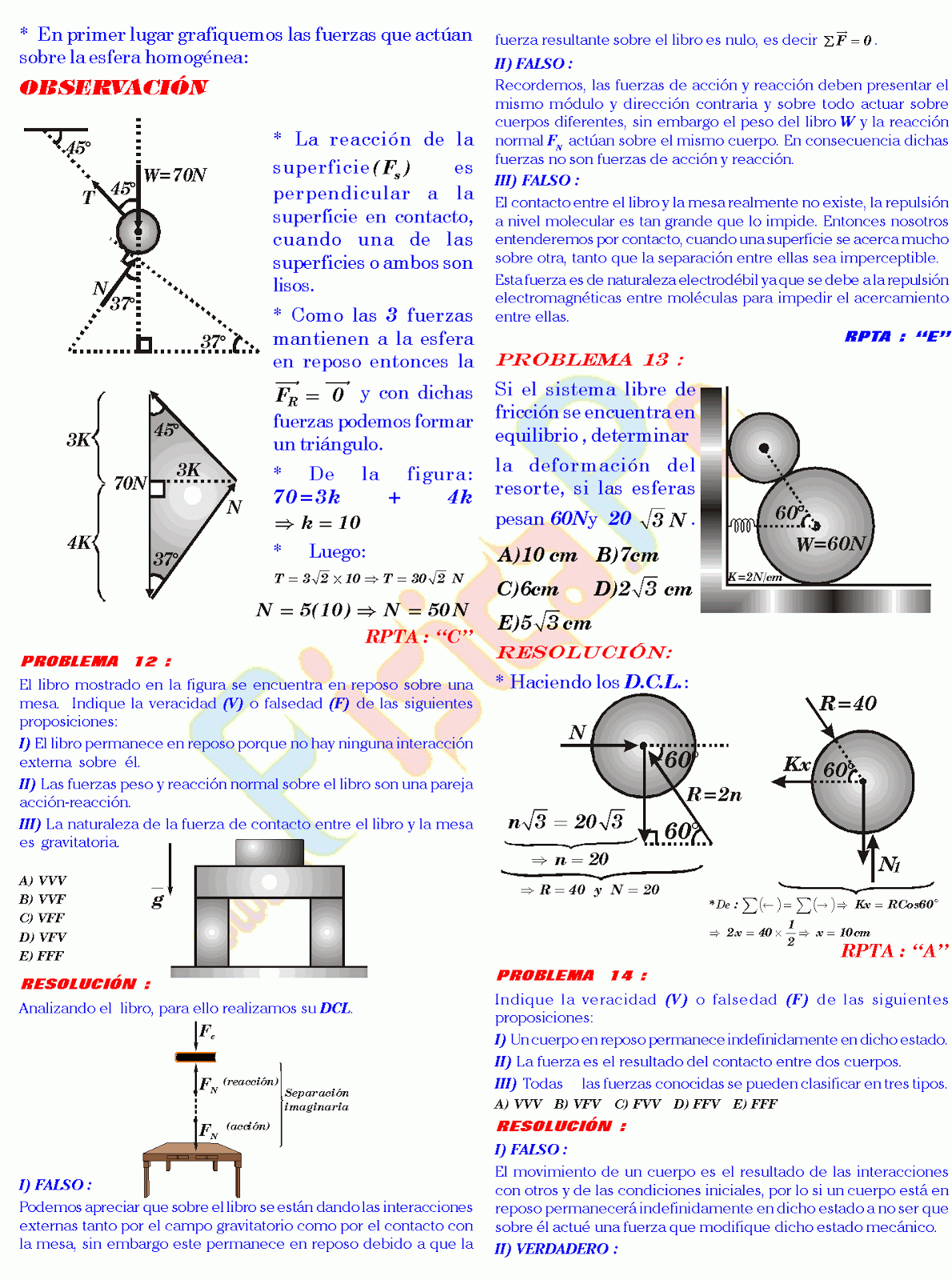

Example 1: Block on a Horizontal Surface "Diagrama de cuerpo libre resueltos"
Consider a block resting on a horizontal surface.
- Object: The block.
- Forces:
- Weight (W): Acting downward.
- Normal Force (N): Acting upward.
The free body diagram would show a box with an arrow pointing down (W) and an arrow pointing up (N). Since the block is at rest, the forces are balanced (N = W). This kind of "diagrama de cuerpo libre resueltos" is very common.
Example 2: Block on an Inclined Plane "Diagrama de cuerpo libre resueltos"

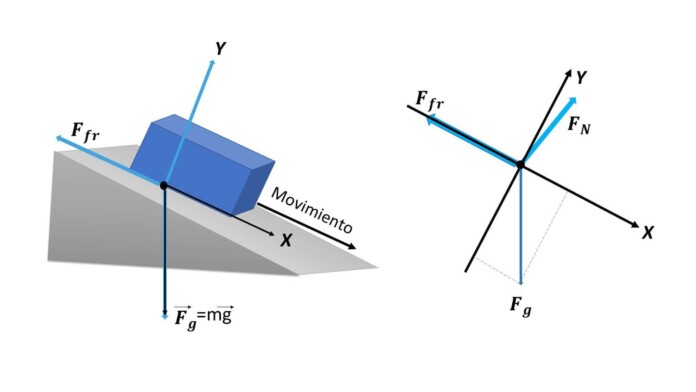

Now, imagine the block on an inclined plane.
- Object: The block.
- Forces:
- Weight (W): Acting vertically downward.
- Normal Force (N): Acting perpendicular to the inclined plane.
- Friction (f): Acting parallel to the inclined plane, opposing motion (if the block is sliding or about to slide).
Here, it's crucial to resolve the weight force (W) into components parallel and perpendicular to the inclined plane. This resolution is a common feature in "diagrama de cuerpo libre resueltos" involving inclined planes.

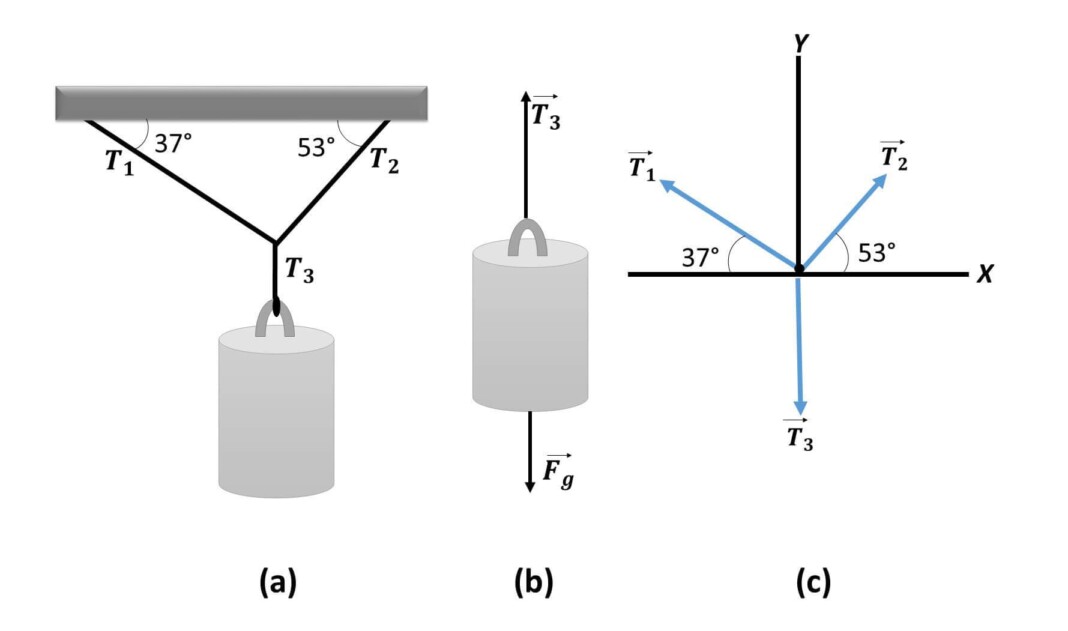

Example 3: Hanging Sign "Diagrama de cuerpo libre resueltos"
A sign is hanging from two ropes attached to the ceiling.
- Object: The sign.
- Forces:
- Weight (W): Acting downward.
- Tension 1 (T1): Acting upward and at an angle.
- Tension 2 (T2): Acting upward and at an angle.
In this case, you'll need to resolve T1 and T2 into their x and y components before applying equilibrium conditions. Many "diagrama de cuerpo libre resueltos" with angled forces require trigonometry.
Common Mistakes to Avoid: "Diagrama de cuerpo libre resueltos"
- Including Forces Exerted By the Object: Remember, FBDs only show forces acting on the object.
- Missing Forces: Carefully consider all possible forces acting on the object.
- Incorrect Directions: Ensure the force vectors are pointing in the correct directions.
- Confusing Mass and Weight: Weight is a force (W = mg), while mass is a measure of inertia.
- Not Resolving Forces into Components: When dealing with forces at angles, resolve them into their x and y components. Analysing "diagrama de cuerpo libre resueltos" reveals these common errors.

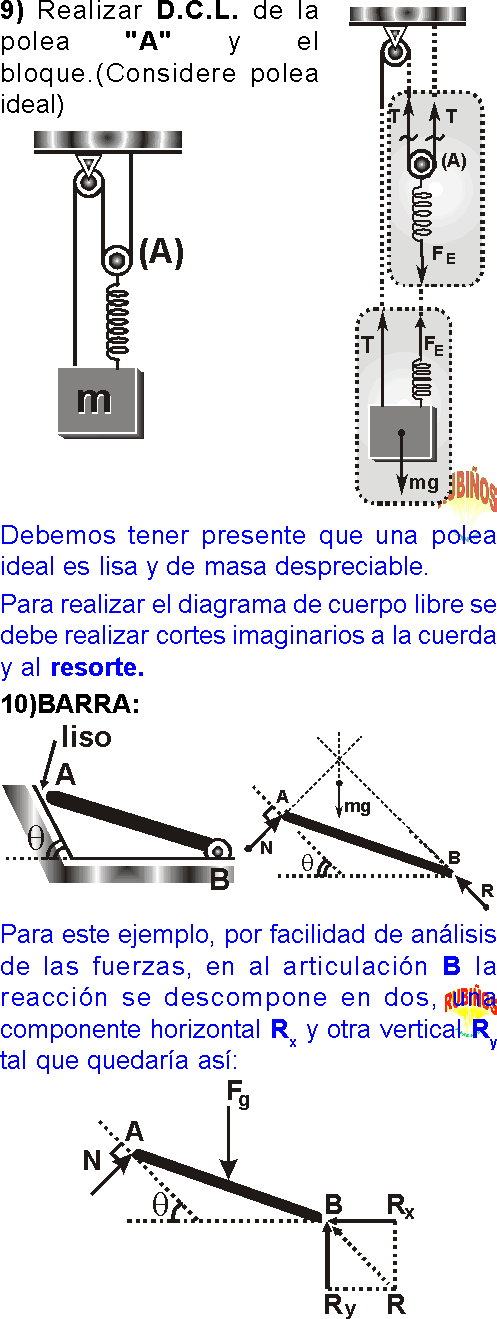

Advanced Techniques: "Diagrama de cuerpo libre resueltos"

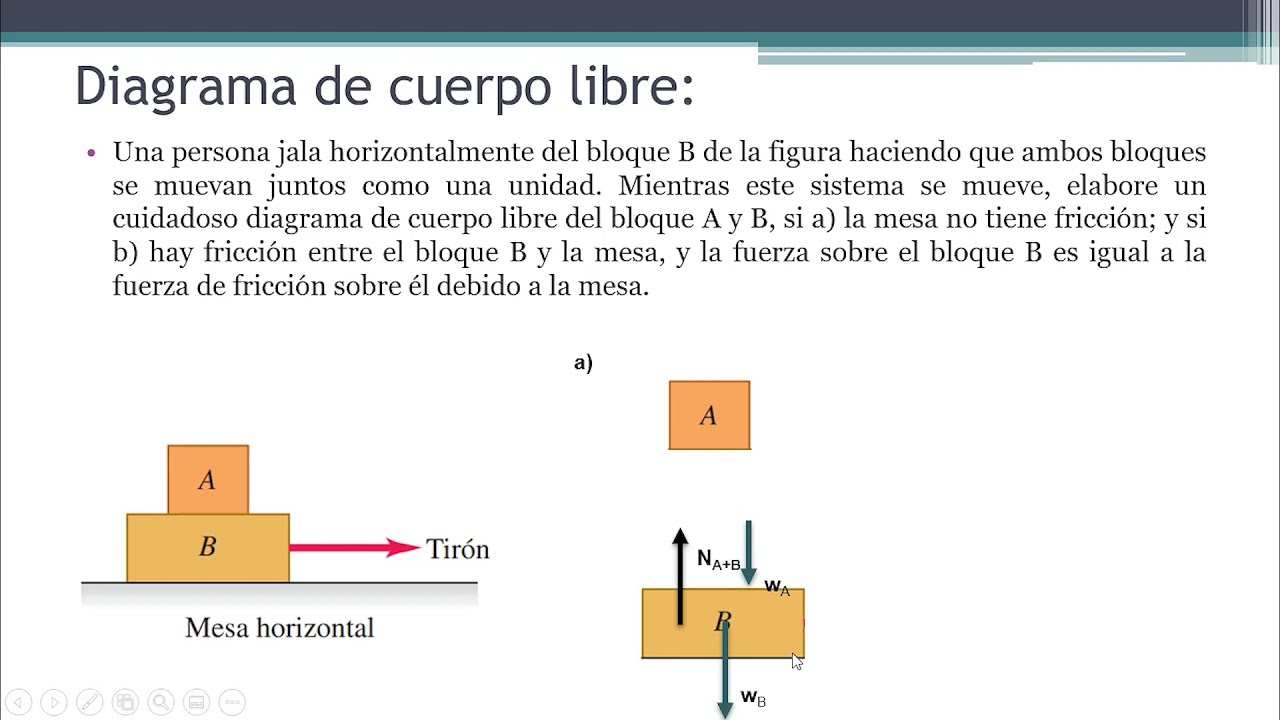

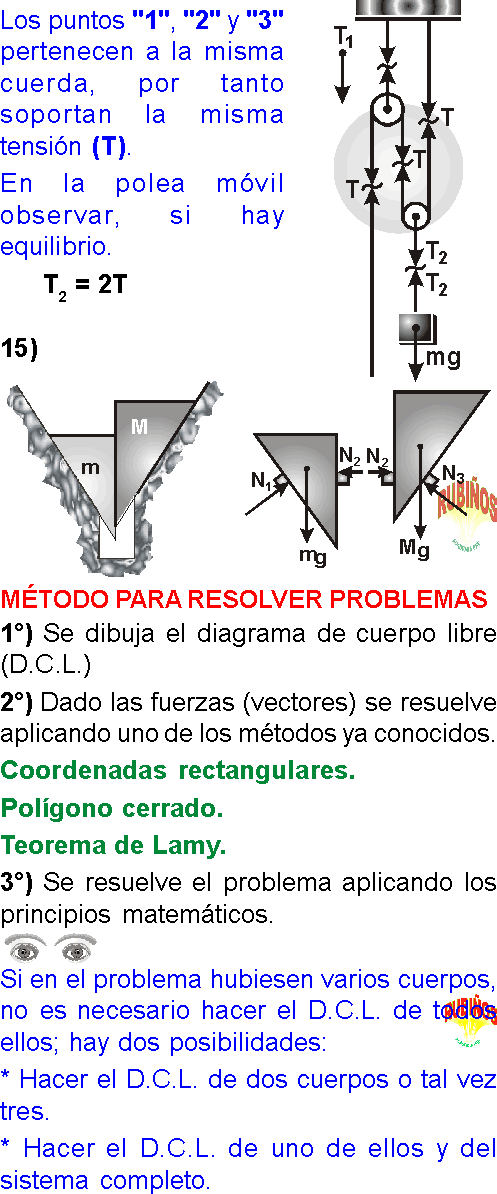

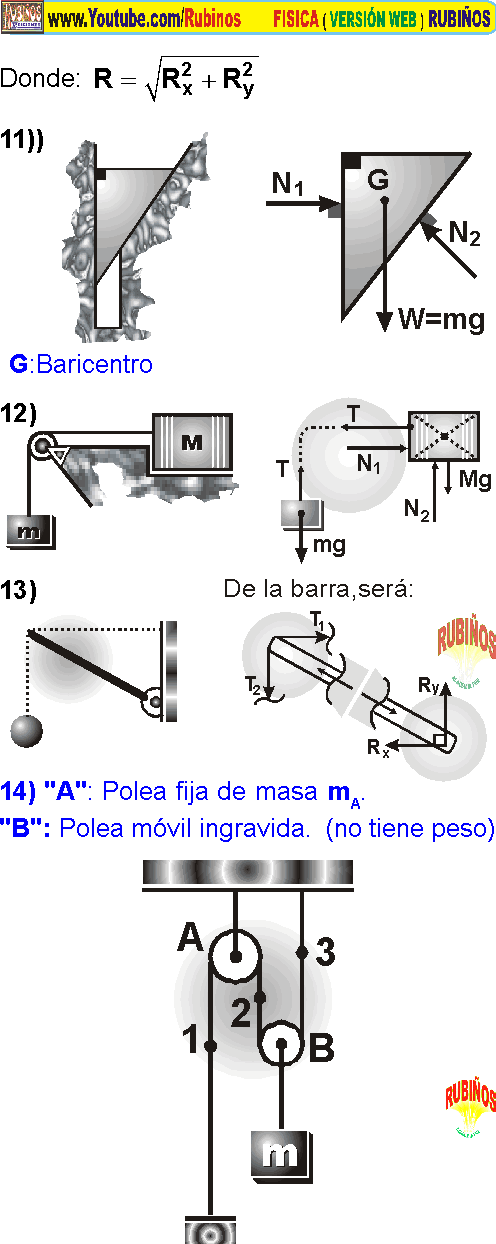

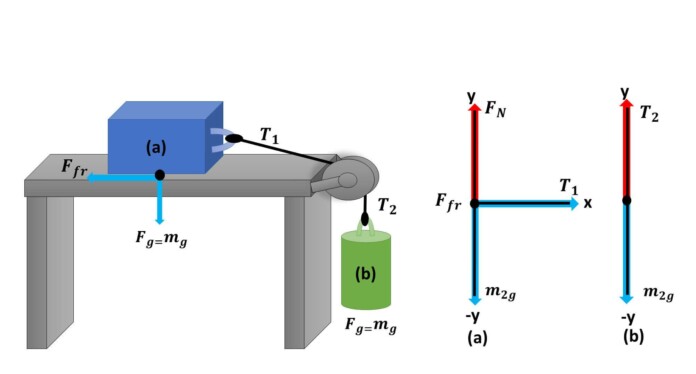

- Systems of Objects: When analyzing systems of interconnected objects, draw a separate FBD for each object.
- Dynamic Situations: In dynamic situations (objects accelerating), apply Newton's second law (F = ma) to relate the net force to the object's acceleration. "Diagrama de cuerpo libre resueltos" are essential when dealing with acceleration.
"Diagrama de cuerpo libre resueltos": Question and Answer
Q: What happens if my free body diagram is wrong?
A: If your free body diagram is incorrect, your subsequent calculations will also be wrong. Accurate force identification and representation are crucial. Double-check each force and its direction.
Q: How do I choose the right coordinate system?
A: Choose a coordinate system that simplifies the problem. For example, with inclined planes, aligning one axis with the plane often makes calculations easier.
Q: What if I have a rolling object?
A: For rolling objects, consider the forces of gravity, the normal force, and potentially friction (both static and kinetic, depending on whether the object is slipping). Remember to draw a diagram!
Q: Where can I find more "diagrama de cuerpo libre resueltos" examples?
A: Physics textbooks, online physics resources (like Khan Academy), and physics problem-solving websites often provide solved examples.
Q: Are "diagrama de cuerpo libre resueltos" only for physics?
A: While primarily used in physics and engineering, the concept of analyzing forces can be applied in other fields like biomechanics or even economics (analyzing market forces).
Conclusion: Mastering the Art of Free Body Diagrams
Mastering free body diagrams is a fundamental skill in physics and engineering. By following the steps outlined in this guide and practicing with various examples, you can unlock the power of FBDs and conquer complex force problems. Remember to pay close attention to force identification, direction, and resolution. And don't forget to utilize readily available "diagrama de cuerpo libre resueltos" as invaluable learning aids.
Summary: What are free body diagrams, why are they important, and how do you create them? How do you avoid common mistakes, and what are some advanced techniques?
